yfwdiode, Standard Rectifier Diode SB5200 data,PDF data book,Pin figure,Packaging specifications,Diode manufacturer SB5200 diode
| 5.0 Ampere / DO-27(DO-201AD) | |||||||
| TYPE | I(AV) | VRRM | IFSM | VFM | I RM @ VRRM | Pafckage Outline | |
| @IRM | VFM | I(AV) | TA=25℃ | ||||
| A | V | A | V | A | mA | ||
| SB520 | 5.0 | 20 | 120 | 0.55 | 5.0 | 0.5 | DO-27 |
| SB540 | 5.0 | 40 | 120 | 0.55 | 5.0 | 0.5 | DO-27 |
| SB560 | 5.0 | 60 | 120 | 0.70 | 5.0 | 0.5 | DO-27 |
| SB580 | 5.0 | 80 | 120 | 0.85 | 5.0 | 0.05 | DO-27 |
| SB5100 | 5.0 | 100 | 120 | 0.85 | 5.0 | 0.05 | DO-27 |
| SB5150 | 5.0 | 150 | 120 | 0.95 | 5.0 | 0.05 | DO-27 |

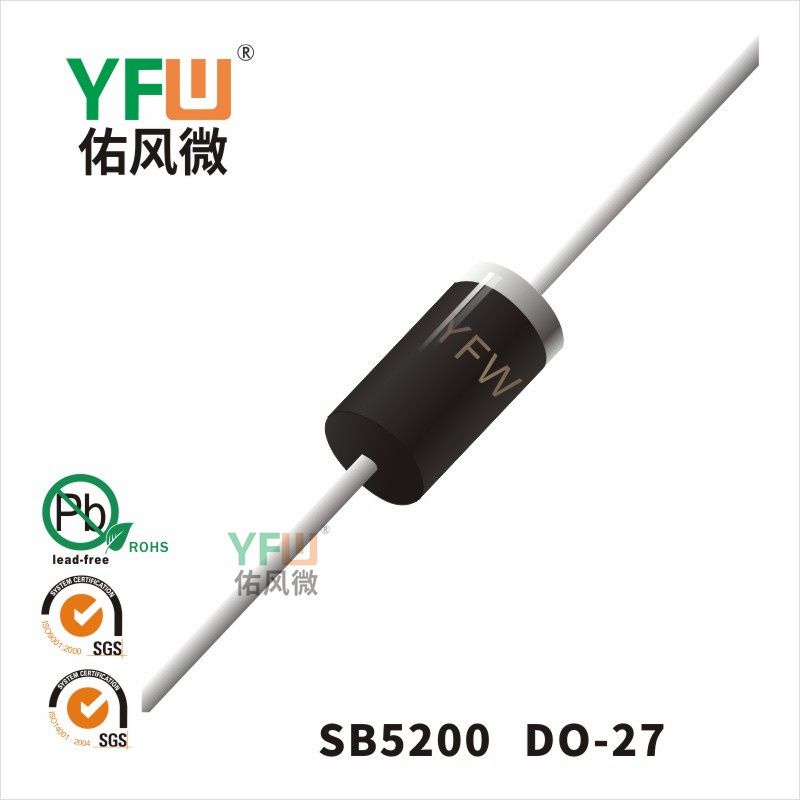

| SB5200 | 5.0 | 200 | 120 | 0.95 | 5.0 | 0.05 | DO-27 |
