DTC114ECA 0.05A 50V SOT-23 marking:24 NPN Digital triode yfwdiode brand

Model: DTC114ECA

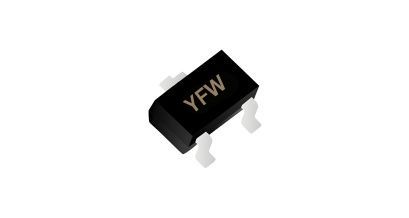

Package: SOT-23

Power supply voltage Vcc: 50V

Output current IO: 0.05A

Collector power loss PC: 200mW

Input voltage: Vo=300mV Io=10mV VI (on)=3V

Output voltage: Io=10mA Ii=0.5mA Vo (on)=0.3V

Input current: VI=5V Ii=0.88mA

DC current gain GI: Vo=5V Io=5mA hFE=30

Number of pins: 3

Product features: Built in bias resistor allows for configuring inverter circuits without connecting external input resistors

The bias resistor is composed of a thin film resistor with complete isolation to allow for negative bias of the input. They also have the advantage of almost completely eliminating parasitic effects

Simply set the switch conditions to operate, making device design easy

Product application: NPN type digital transistor
