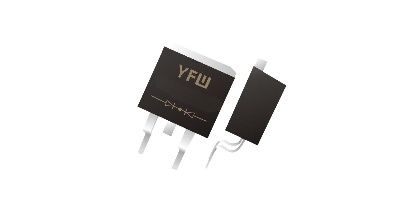

BT139Q-800E 16A 800V TO-263 markingBT139Q-800E Controllable Silicon yfwdiode brand

Model: BT139Q-800E

 Encapsulation: TO-263

 Repeated peak shutdown voltage VDRM: 800V

 Repeated peak reverse voltage VRRM: 800V

 Average current positive voltage IT (RMS) in the conductive state: 16A

 Non-repeat peak surge current in the conductive state (full cycle, F=50Hz) ITSM: 140A

 Door trigger current IGT: 10mA

 Knot temperature Tj: 125℃

 Number of pins: 3

 Product characteristics: It has the ability to withstand high current impact loads, provides high dv/dt rate and has strong electromagnetic interference immunity.

 Product applications: power chargers, T-tools, massagers, solid-state relays, AC motor speed adjustment, etc.
