BT136D-600E 4A 600V TO-252 markingBT136D-600E Controllable Silicon yfwdiode brand

Model: BT136D-600E

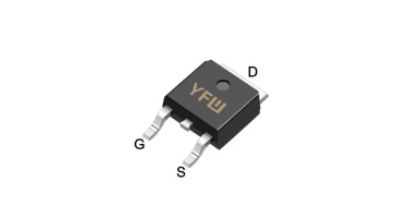

 Package: TO-252

 Repeat peak shutdown voltage VDRM: 600V

 Repeat peak reverse voltage VRRM: 600V

 Current forward voltage IT (RMS) with average value in conduction state: 4A

 Current of non-repeated peak surge in conduction state (full period, F=50Hz) ITSM: 25A

 Door trigger current IGT: 10mA

 Nodth Tj: 125°C

 Number of pins: 3

 Product features: These motors have a strong ability to withstand high current shock loads and excellent redirection performance. It is especially recommended for 4 quadrants for inductive loads.

 Product applications: washing machine, vacuum cleaner, massager, solid-state relay, AC motor speed regulation, etc.

 Welcome to consult Youfeng Microelectronics. Our company is a high-tech enterprise specializing in the research and development, production and sales of semiconductor discrete devices. The company mainly produces and sells: ordinary rectifier diodes, fast recovery diodes, high-efficiency diodes, ultra-fast recovery diodes, Schottky diodes low-pressure descending Schottky diodes, silicon carbide diodes, rectifier bridge stacks, fast-recovery bridge stacks, Schottky bridge stacks, TVS transient suppression diodes, ESD electrostatic protection components, voltage-stabilized diodes, transistors, controlled silicon thyristors, MOS field effectors, etc. More details can be found on our official website www.yfwdiode.com.
