BT137-800D 8A 800V TO-220C markingBT137-800D Controllable Silicon yfwdiode brand

Model: BT137-800D

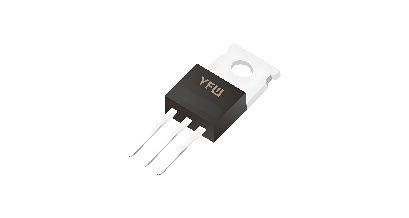

 Package: TO-220C

 Repeat peak shutdown voltage VDRM: 800V

 Repeat peak reverse voltage VRRM: 800V

 Current forward voltage IT (RMS) with average value in conduction state: 8A

 Non-repetitive peak surge current in conduction state (full cycle, F=50Hz) ITSM: 65A

 Door trigger current IGT: 5mA

 Nodth Tj: 125°C

 Number of pins: 3

 Product features: These motors have a strong ability to withstand high current shock loads and excellent redirection performance. It is especially recommended for 4 quadrants for inductive loads.

 Product applications: washing machine, vacuum cleaner, massager, solid-state relay, AC motor speed regulation, etc.
