BC858AW-BW-CW -0.1A -30V SOT-323 marking3J 3K 3L Small signal triode yfwdiode brand

Model: BC858AW-BW-CW

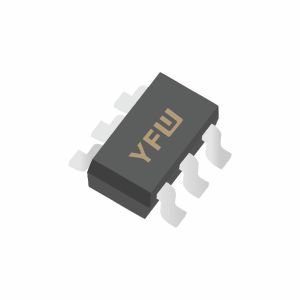

 Package: SOT-323

 Collector-base voltage BV(cbo): -30V

 Collector-emititter voltage BV (ceo): -30V

 Transmitter base voltage BV (ebo): -5V

 Collector current IC: -0.1A

 DC current gain: VCE=-5V IC=-2mA A: hFE=125-250

 VCE=-5V IC=-2mA B: hFE=220-475

 VCE=-5V IC=-2mA C: hFE=420-800

 Collector-emit polar saturation voltage: IC=-100mA IB=-5mA VCE(sat)=-0.65V

 Number of pins: 3

 Product features: complementary to BC847W Power dissipation <150mW Suitable for automatic insertion

 Product applications: suitable for switch and audio amplifier applications
